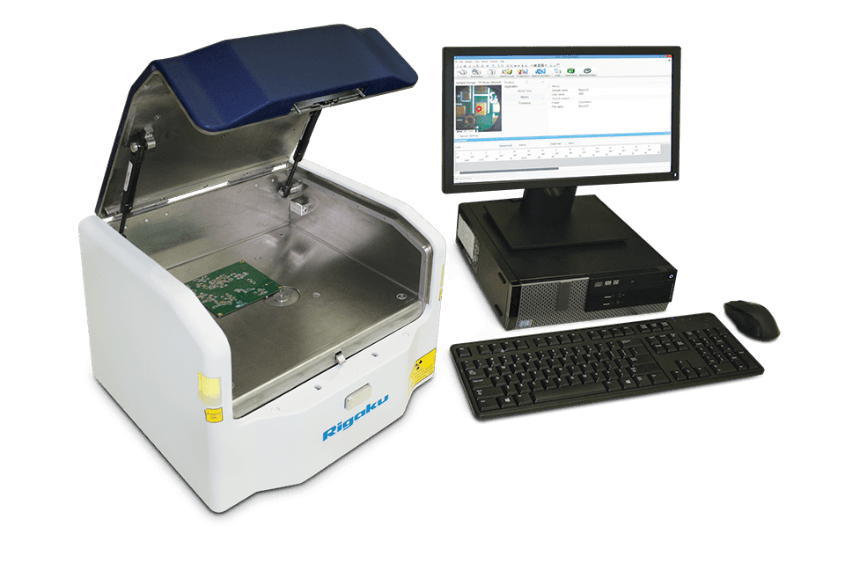

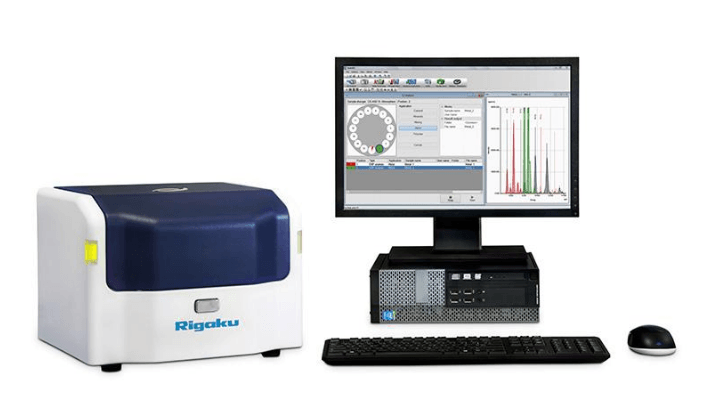

Rigaku NEX DE Series

Rigaku NEX DE series spectrometers provide rapid, non-destructive, multi-element analysis—covering concentrations ranging from low parts-per-million (ppm) levels to high weight percent (wt%) levels. The NEX DE is a versatile Rigaku EDXRF spectrometer capable of non-destructive analysis of elements from sodium (Na) to uranium (U) across a wide range of matrices—including homogeneous liquids of any viscosity, solids, thin films, alloys, slurries, powders, and pastes. The series comprises the NEX DE and the NEX DE VS.

Key Advantages
•    Elemental XRF analysis is possible in the field, at the plant, or in the laboratory, thanks to the unit's compact size and light weight.
•    A 60 kV X-ray tube and a Peltier-cooled SDD ensure exceptional short-term repeatability and long-term reproducibility, along with superior elemental peak resolution.
•    The NEX DE VS analyzer features a high-resolution camera and automatic collimators (10, 3, or 1 mm diameters), making it an excellent solution for analyzing foreign inclusions and printed circuit boards (PCBs) for RoHS compliance.
•    Advanced RPF-SQX fundamental parameters software, incorporating Rigaku Scattering FP.
•    Powerful, user-friendly QuantEZ software with a multilingual user interface.
•    Useful options include the fundamental parameters method, various automatic sample loaders, a sample rotation accessory, and helium purge or vacuum chamber capabilities to enhance light-element detection sensitivity.

Applications:
•    Ore mining; beneficiation of non-ferrous and precious metals; recovery of gold and uranium from waste ore (dumps and tailings)
•    Cement and raw materials
•    Petroleum products, fuels, oils, and gasoline
•    Metallurgy
•    RoHS analysis in electrical and electronic equipment
•    Coal analysis
•    Silicone coating thickness on paper and plastic
•    Chromium coating weight on aluminum and steel
•    Environmental monitoring: heavy metals and elemental analysis of air filters
•    Chemical industry
•    Material identification
•    Analysis of palladium catalysts in the pharmaceutical industry
•    Scientific research.
